Introduction

Intelligent automatic transfer switch（ATS) is Multiple Power Source Management: This 3-way automatic transfer switch has 3pcs power input interfaces, including mains electricity (primary power source), generator and an inverter. When the main power supply fails, voltage instability or other issues, this switch can automatically detect and switch to the next available power source to ensure uninterrupted power supply.

Flexible Parameter Adjustment: You can set the voltage and frequency range according to its needs to trigger automatic switching. Comes with instructions to debug your transfer switch according to the instructions. Including power-on delay time, protection recovery delay time, overvoltage protection value, undervoltage protection value, overcurrent protection, piority phase, overcurrent protection action time, continuous overcurrent protection frequency

Real-time monitoring: With 5 LED display screens and 4 indicator lights, easy to clearly know which    circuit is currently responsible for power supply or whether there is an error. It provides real-time input voltage and output current status, monitors the performance of the power supply equipment and performs necessary Adjustments to help you make power switching decisions, such as switching to a generator or inverter when mains power is unstable

Comprehensive Safety Protection: It has multiple safety protection features, including low-voltage protection, overvoltage protection, overcurrent protection, etc. These not only enhance power stability and reliability but also protect connected devices from power-related issues, reducing potential hazards associated with power problems

Wide Applicability: With 2-way backup power source interfaces, it is compatible with most generators, solar panels and other power supply devices with an output voltage . Suitable for various application scenarios, including home backup power systems, commercial buildings, industrial equipment, etc., providing a reliable power switching solution in different fields

Product Description

1、Automatic transfer switch: with “priority” stage

2、Based on microcontroller

3、Set parameters through buttons

4、Overv oltage and under voltage protection

5、Over current protection

6、LED working voltage indication

7、Rail installation

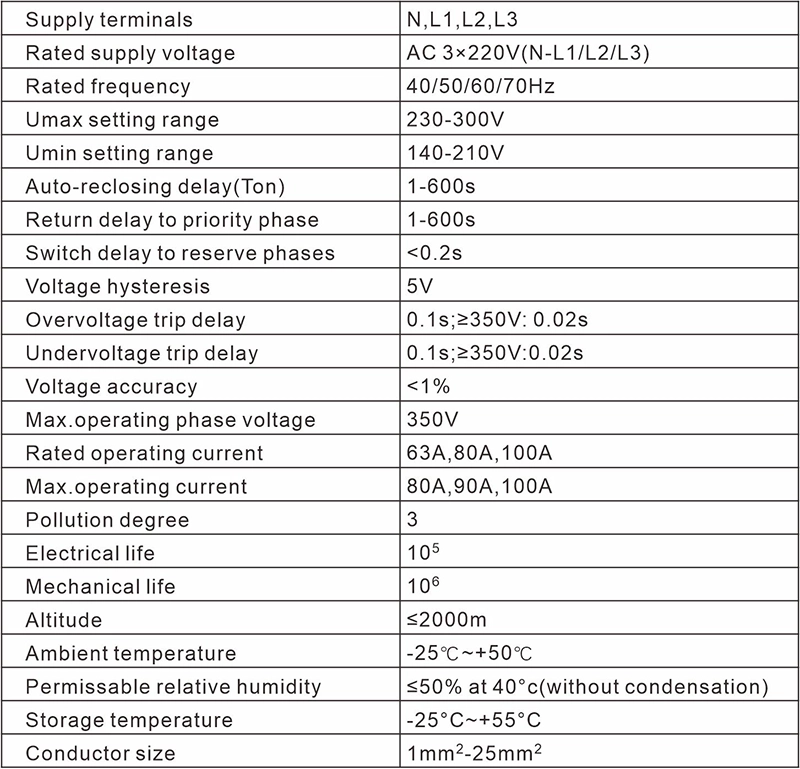

Technical data

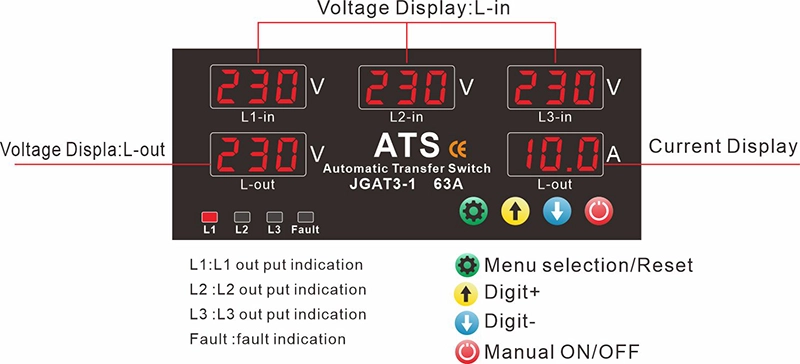

Front-face panel

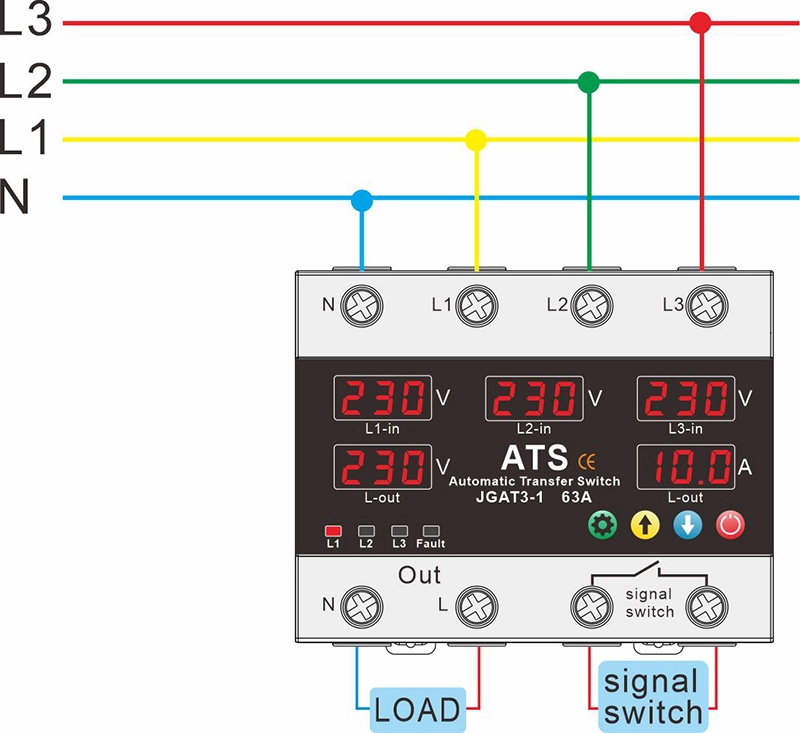

Wiring diagram/Dimensional Drawing

Digital display adjustable current and voltage protector
