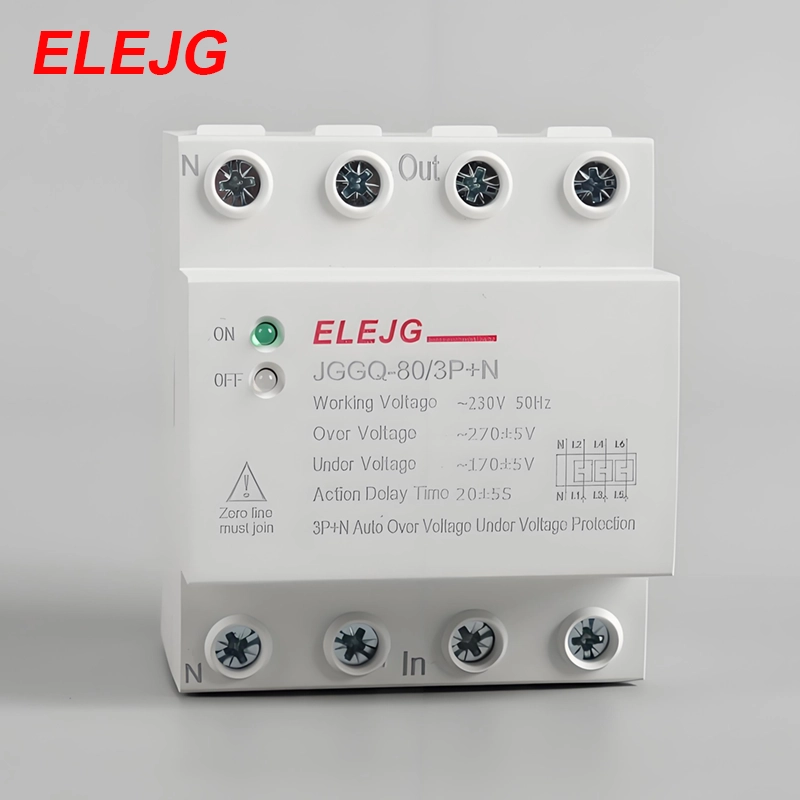

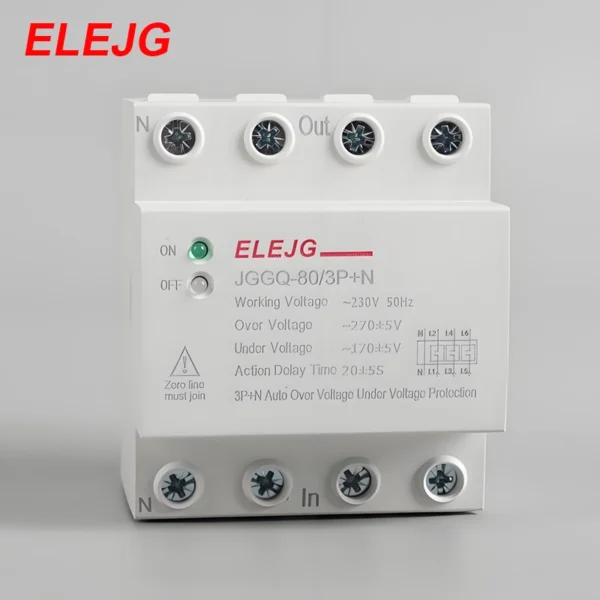

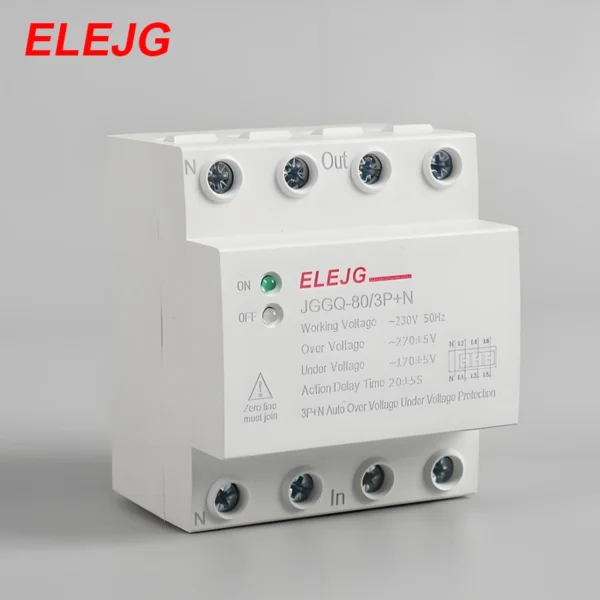

Three phase four wire over and under voltage protector JGGQ-80S/3P+N  It is an upgrade from the ordinary type of product, product technical characteristics: low power consumption, long life, precise control, lack of phase protection, lack of zero line protection, maximum short-circuit limit current of 3000A, software control of humanization, and clear indication with Led light, the product is powered on for the first time under normal conditions of power supply closing time of 5 seconds, when the line occurs undervoltage, lack of phase and other faults, when the power supply turns normal, the closing time is 20 seconds, this design saves too much time to wait when the power grid is out of power.

The three-phase four-wireSelf-resettable over/undervoltage protectorIt has the functions of phase loss, zero loss, overvoltage and undervoltage protection, and is often used in three-phase four-wire distribution lines and photovoltaic power generation combiner boxes.

Three phase four wire over and under voltage protector of parameters

1. Nominal akım: 32A, 40A, 50A, 63A, 80A

2. Working voltage: AC230V, 50Hz (phase line to neutral line working mode)

3. Overvoltage protection value: AC270V ±5V (phase to zero)

4. Undervoltage protection value: AC170V ±5V (phase to zero)

5. First power-on closing time: 5 seconds

6. Reset time after failure: 20 seconds

7. Action time: 0.1 seconds

8. The highest is possiblewithstandAC450V overvoltage(phase to zero)。

Implementation standards

JGJ242-2011 Konut Binalarının Elektriksel Tasarımı için Kod

JGJ/T16-2008

GJBT-672 Konut Binaları Elektrik Tasarım ve Yapım Standart Atlası

GB/T68895.10-2001

Sınıf III elektrikli cihazlar için güvenlik standartlarını karşılar

JB/T12762-2015 《3phase 4wire over and under voltaj koruyucusu（OUPA)》
